100% polyester needle punched nonwoven geotextile fabric
Product Introduction:
Short fiber knitting geotextile takes the polypropylene fiber or the polyester fiber short fiber as the primary material,
after blooms the pine, to comb, disorderly,craft productions and so on shop net, acupuncture to become.
Technical Parameters :
| Specification | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remark |
| Quality deviation per unit acreage% | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| Thickness,mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
| Width deviation for range,%m | -0.5 | |||||||||||
| Mightiness at break,KN/m ≥ | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
| Elongation at break,% | 25-100 | Vertical and horizontal | ||||||||||
| CBR bursting strengthk,KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |
| Effective aperture O90(O95)mm | 0.07-0.20 | |||||||||||
| Vertical osmotic coefficient,cm/s | K x(10-1-10-3) | K=1.0-9.9 | ||||||||||
| Tearing strength, KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | Vertical and horizontal |

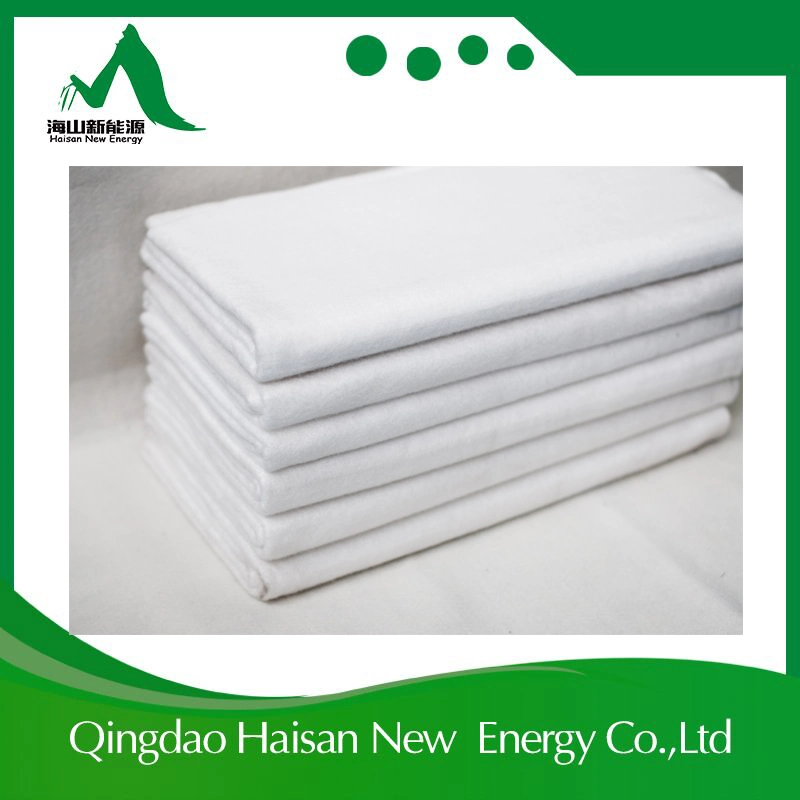

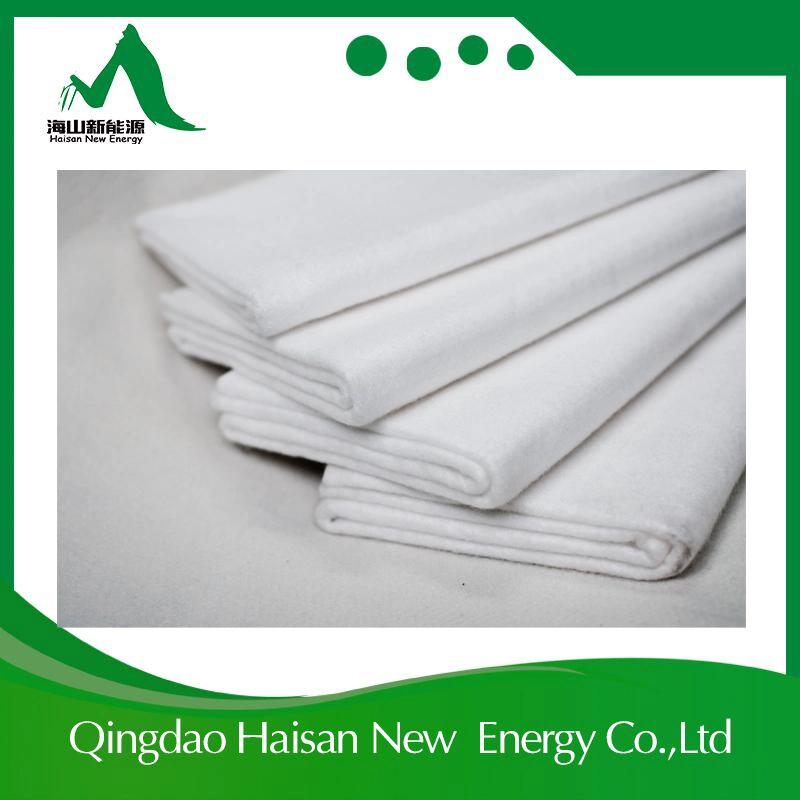

Detailed images:
Product features:
*Net holes are easy for net blockage, since net structure formed by indefinite fider has variable and motility.
*It has high permeation and can keep good permeation under the pressure of earthwork.
*It has corrosion resistance, uses chemical fiber such as polypropylene or Dacronas raw material, has acid and
alkali resistance, hasn't corrosion or moth eating and has oxidation resistance.
*It has convenient construction, small weight and convenient uses.
Application :
*It isolates building materials with different physical features, makes two or multiple materials with outerosion or
mixing, keeps overall structure and functions of material and makes load bearing capacity of structure strengthen.
*When water flows into coarse soil layer from soil layer, it uses good gas and water permeation of knitting
geotechnical geotextile, allows water flow to pass and effectively holds back soil particle, fine sand andsmall
stone so as to keep stability or water conservation project.
*Itis good water guide material, and can form drainage channel in soil body and remove excessive liquid and
gas from soil structutre.
*It uses knitting geotechnical cloth to strengthen tension resistance strength and deformation capacity of soil
body, to strengthen stability of structure and to improve soil body quality.
*It effectively diffuses, transmits or decomposes central stress and prevents soil body damage by functioning
of external force.
*Knitting geotechnical cloth matches other materials and forms nonpermeation Isolation layer.
Our services:
1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in fluent English
3.Special discount and protection of sales are provided to our distributor.
4.Sample:we can send out sample for test in one week if the order quantity is big enough. But the shipment charges is
usually paid by your side,the charges will be rebounded when we haveformal order.
5.Professional factory: We are manufacturer,specializing in producing all kinds of geogrids for more than 10 years,
competitive with good quantity.
6.As an honest seller, we always use superior raw material, advanced machines,skilled technicians to ensure our products
to be finished in high quality and stable feature.
Contact:
Qingdao Haisan New Energy Co.,Ltd.
Add: Room 434, Building 2, No. 18 Qinling Road, Laoshan District, Qingdao, Shandong.
Tel: 86-532-66883018
Mobile : 86-18554889732
Website: haisan.en.made-in-china.com
Name :Evan Zhou
FAQ:
| Q1. May I have the sample for testing? |
| A:Yes, we are glad to provide free samples within 1 week. |
| Q2.Can we use our own logo or design for sticker? |
| A:Yes,you can , you can contact with the salesman, please send an email to her /him and tell. |
| Q3.What certification do you have? |
| A:CE,ISO9001/ISO14001/OHSAS18001 etc. |
