Agricultural Parts of Combine Harvester Agricultural & Forestry Machinery Safety Vision Solutions
7 inches Digital Waterproof monitor camera System with dual view(DF-75605101)
7 inches Digital Waterproof monitor camera System with dual view(DF-75605101)

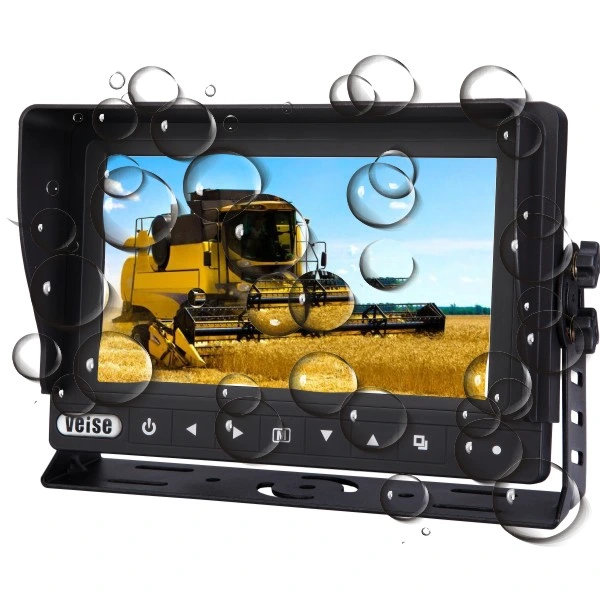

| Waterproof Color Monitor(Model:SP-756) |
| 7"Digital Screen TFT LCD Color Monitor with Removable Sun Visor |
| Waterproof: IP69K |
| OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30" |
| OSD MENU Separately Set Each Camera Mirror/Normal image |
| OSD MENU Separately Set Each Camera Trigger Priority |
| Color System:PAL/NTSC (AUTO) |
| Display Resolution: 2400(H) X 480(V) dot |
| Support Two-channel Camera Video Inputs:1.0Vp-p75Ω |
| Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65 |
| Contrast ratio: 500:1 |
| Back-light : Single LED 400cd/m2 Brightness |
| Operating temperature: -20ºC to +70ºC |
| Storage temperature: -30ºC to +80ºC |
| Load Dump: DC14+87V(Td400mS) 5pulses |
| Free Operating Voltage: DC11-32V |
| External dimensions: (L x W x T) (199 x 136 x 30mm) without mounting Sun Visor |
| Weight Approx: 379g |
| Aluminum Shell Waterproof IR Color Camera(MODEL:DF-8059) |
| Image Type: 1/3 inch Color CCD |
| Horizontal Resolution:700TV Lines |
| Effective pixel:NTSC:976(H)×494(V) PAL:976(H)x582(V) |
| Usable Illumination : 0Lux ( Built in 10pcs IR for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Power supply:DC12V from Reversing Monitor |
| Dimensions: 55(L) x 63(W) x 74(H)mm |
| Product Accessories |
| U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,15m cable, Auto cigarette lighter,User's Manual |
