PRODUCTION PRINCIPLE OF MELTBLOWN CLOTH:

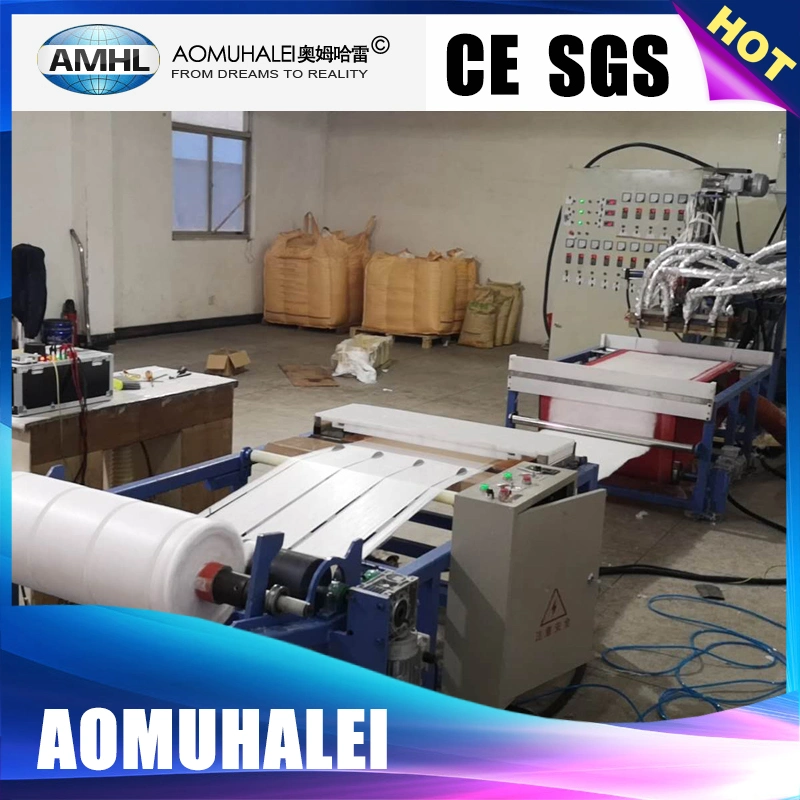

Hot Air injection is used to extrude the hot polypropylene from the holes of the Spinneret nozzle to make it extend in the form of fiber, and then gather on the conveyor belt to form the fiber web according to its self-fusion. The spinnerets are lined with tiny nozzles, and the flow of molten polypropylene from the nozzles extends through the high-speed Air Stream and concentrates on the moving conveyor belt to obtain a melt-blown cloth.
The melt blown cloth mainly uses polypropylene as the main raw material, the fiber diameter can reach 1 ~ 5 microns. These microfibers with unique capillary structure increase the number and surface area of fibers per unit area, thus, the melt blown cloth has good filterability, shielding property, heat insulation and oil absorption. It can be used in the fields of air, liquid filter material, isolation material, absorbing material, mask material, heat preservation material, oil absorption material and wiping cloth etc. .
|Serial number||Name of accessories||Model Number||Power||Unit capacity|
|1||CAST aluminum heating ring||Inner diameter 120 * Height 350||380V,2.0KW||10 tablets|
|2||Coil Cooling Fan||180W||Five|
|4||FREQUENCY CONVERTER||Roots Blower||22KW||1|
|5||FREQUENCY CONVERTER||Roll-up curtain||0.75KW||2|
|7||Motor||Metering pump decelerates 1:50 motor||0.75KW||1|
|8||Motor||Blade Motor speed ratio: 3||90 Watts||1|
|11||Unpowered drum||Outside diameter 50||6|
|12||Air Blower||2,000 cubic hours||4KW||1|
|13||Bending roll||Outer Diameter 100||1|
|14||Expansion shaft||75 MM (3 inches)||2|
|15||Cutting knife||Inside 40, outside 150||4|
|16||Air Heater||22KW+22KW||UNIT PRICE: 900 units||Two series|
|17||Nose heater||Diameter 20.5, length 190||900W||6|
|18||Heating Rod||Diameter 20.5, length 230||900W||4|
|19||Suction Drier||Simmer 50 kg + 300 kg||1|
|20||Eject Gearbox||65||173-16 speed ratio||1|
|21||Speed reducer||Roll-up curtain||Rv63-20||2|
|22||Main control box||Temperature Control Section 12,||1|
|23||Melt blown Mesh chain||0.88 wide, 3.4 meters long||1|
|25||Yang Ming brand temperature controller||12|
|26||Screw, barrel||65 screw barrel||ASPECT RATIO: 1:30||1|
|27||Cord Drum||Diameter 150||1|
|28||Rewinding drum||Diameter 150||1|
|29||Frank, pick up||1|
|32||High temperature air supply pipe||Six points, 16 mm bore||4|
|33||Screw discharge screen||Aperture 5.2 mm||1|
|34||Antistatic tester||50 kv high voltage testing machine||Wuhan Wu Gao Electric Survey Company|
|35||Three-leaf roots blower||22KW|
