Product DescriptionAutomatic Nonwoven D-cut Bag Fabric Bag T-shirt Bag Vest Bag Drawstring Bag Machine (ZXL-B700)Automatic Nonwoven D-cut Bag Fabric Bag T-shirt Bag Vest Bag Drawstring Bag Machine Product Introduction :This machine adopts mechanical,electrical,optical and pneumatic integration technology, suitable for non-w

Featured Products

Product Description

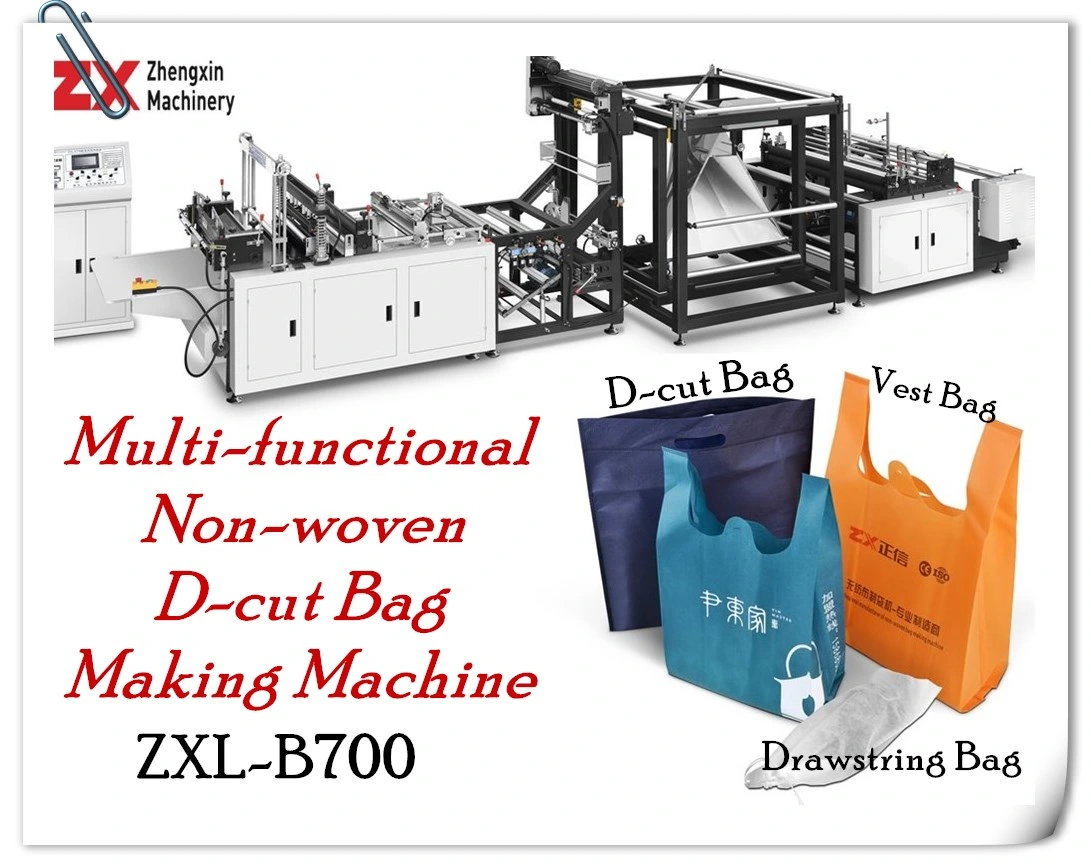

Automatic Nonwoven D-cut Bag Fabric Bag T-shirt Bag Vest Bag Drawstring Bag Machine (ZXL-B700)

Automatic Nonwoven D-Cut Bag Fabric Bag T-Shirt Bag Vest Bag Drawstring Bag Machine



Automatic Nonwoven D-cut Bag Fabric Bag T-shirt Bag Vest Bag Drawstring Bag Machine Product Introduction :


This machine adopts mechanical,electrical,optical and pneumatic integration technology, suitable for non-woven fabric, different specs of flat bag,D-cut bag,bottom/side gusset bag, vest bag and drawstring bags etc(used for shopping bag, gift bag,cloths bag ,shoes bag)can be made by this machine.


Machine Advantage:



  1. This machine adopts Taiwan PLC touch screen,which can be edited.
  2. Auto counting and stopping when setting numbers freely;
  3. High voltage static processor and auto constant temperature heating controller;
  4. Equipped with stepping motor(computer fixed length),manual unwinding magnetic powder tension controller and auto rectifying deviation, photoelectric tracking,printing color mark track orientation,auto counting and alarming,auto punching etc.,which make it accurate and stable.
  5. All aspect of the bags adopts thermal bonding by ultrasonic welding,such as bag edge folding, side sealing etc, which makes the machine fast and easy to operate , the products firm sealing,beautiful and decent.


Automatic Nonwoven D-cut Bag Fabric Bag T-shirt Bag Vest Bag Drawstring Bag Machine Producing Process:

Automatic Nonwoven D-Cut Bag Fabric Bag T-Shirt Bag Vest Bag Drawstring Bag Machine


Roll Material--Cross Folding--Drawstring--Thermal Bonding--Doubling--Side Gusseting--Positioning--Punching--Thermal Bonding--Cutting--Collection




Main Technical Parameters:


TypeZXL-B700ZXL-B800
Production Speed20-120pcs/min20-120pcs/min
Bag Width100-800mm100-800mm
Bag Height200-600mm200-700mm
Material Basis Weight30-120g/m230-120g/m2
Power Supply380V/220V380V/220V
Total Power12KW15KW
Overall Dimension7600×1900×2100mm7800×2100×2300mm
Weight1500KG2000KG

Packing&Delivery:

Automatic Nonwoven D-Cut Bag Fabric Bag T-Shirt Bag Vest Bag Drawstring Bag Machine




About us:

Automatic Nonwoven D-Cut Bag Fabric Bag T-Shirt Bag Vest Bag Drawstring Bag Machine



Zhejiang  Zhengxin Machinery Co.,Ltd located in the seashore city of Wenzhou Pingyang.The company is a technology-based enterprise with technical strength and economic power.The main production is automatic non woven bag making machine,non woven fabric printing machine,non woven cross cutting machine,non woven slitting machine and non woven bag handle hot sealing machine etc. Equipment of non woven bag machinery completed.We have a group of middle and senior technical personnel and strong technical force,with design,development,production,installation,service integrity of operating system and passed the ISO9001 quality system certification and CE international safety certification,.

Our company always adhere to the"integrity,quality,innovation,enterprising"management idea,strives for the survival by quality,seek development by science in manufacturing of printing plastic packing machinery and absorb the foreign advanced technology and process at the same time,Which is ensure the stability and durability of the equipment and very convenient maintenance.Our equipment have been exported to more than 20 countries and regions,including Middle East,Southeast Asia,South Asia,Australia,Africa and so on.Besides,We well received by the masses of users.

Zhengxin Machinery Mechanical tenet:to superior products,cheap price,good service and first-class molding machine enterprise.Our factory strictly follow the enterprise tenet,take honestly as this,warmly welcome friends from all walks of life both at domestic and abroad for our mutual benefits and assistance and seek common development cause.
