Production Details

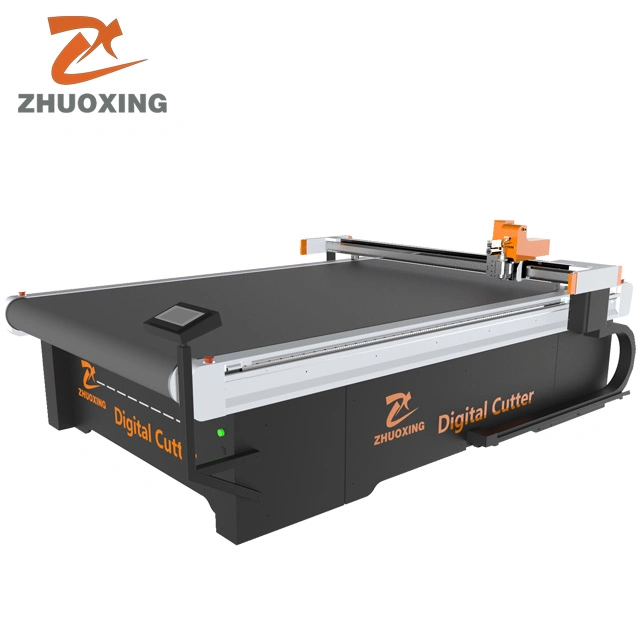

Cloth Nonwoven Textile Cutting Machine CNC Automatic Making Machine Cutter

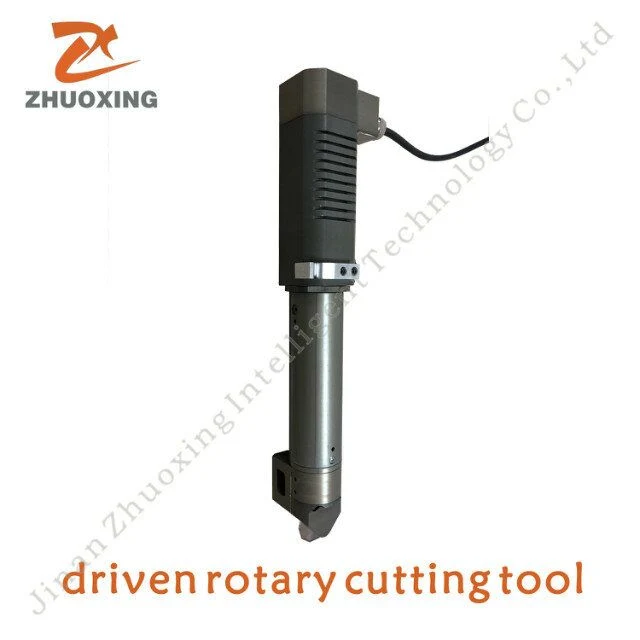

Our clothing cutting machine can cut any pattern of various clothing fabrics accurately, and can be equipped with an auto-feeding device to achieve continuous automatic cutting. Multilayer fabric cutting is perfectly achieved by Zhuoxing machine. Usually, the equipped cutting tools are the driven rotary cutting tool, oscillating cutting tool, V shape punching, and drawing pen.
| Technical Parameters: | |
| Model | ZX-1625VA |
| Cutting Tools Recommended | Oscillating Knife, Rotary Knife, Pen, V shape Punching |
| Working Area | 1600*2500(W*L) mm |
| Rated Power | 11kw |
| Max. Cutting Speed | 1200mm/s |
| No-load Speed | 1500mm/s |
| Cutting Thickness | 0.1-110mm (depending on the materials) |
| Cutting Accuracy | ±0.1mm |
| Transmission Interface | Ethernet |
| Drive System | Servo motor, linear guide rail, rack and pinion |
| Material Fixed Mode | Vacuum adsorption |
| Format Supported | DXF, PLT, etc |
| Operation Property | Online/offline operation, continuous cutting with high efficiency, 7*24 hours with zero downtime |
| Safety Device | Infrared sensing device, 4 emergency stop buttons, intelligent anti-collision device |
| Power Supply | AC 110V/220V/380V, 50/60Hz, single/three phase |
| Dimension | 3300x2250x1450mm |
| Weight | 1000kg |
Cutting Examples by Zhuoxing Machine
Features:
1.Flexible: Easy Disassemble of knife cutting heads and knife tools
2.Reliable: Equip Ethernet port, can connect to any computer or laptop. Data transitation more easier.
3.EMC/EMI (Electromagnetic interference)
4.Steady: 6mm steel tube, Integrated welding body for equipment steady working
5. Auto Feeding and handling system.
6. Special table diagnostic design:
After scanning the table, the machine will fill the table status data into the computer automatically. Adjusting the cutting depth based on table status data, making accurate kiss cutting.
7. Flexible beam: Height can be adjusted to suit material with different cutting depth requirements.
8. Different cutting tools for different industries. oscillating cutting tool, Driven rotary cutting tool, drawing tool, kiss cut tool, milling tool, V-cut tool, creasing tool
Why choose Zhuoxing:
1. 8 years experience
2. independent R&D
3. patented technology
4. high quality
5. reasonable price
6. credible after-sales service
