Continuous Filament nonwoven textile Composite Geomembrane
Composite geomembrane is a new type of anti-seepage material made by infrared ray heat with geotextile and geomembrane (PE, EVA etc.)
Classification:
One-textile one-membrane, two-textile one-membrane, N-textile N-membrane.
Performance:
High puncture-resistance, high friction coefficient, perfect extend, high deformation modulus, excellent performance of chemical erosion resistance, good aging-resistance, good anti-seepage, no influence by climate.
Product main use:
Anti-seepage, obstruction, reinforce, crack-resistance of irrigation works, environment protection, construction, roads, tunnel etc.
Product specification:
Unit area weight: 300~2500g, PE thickness: 0.1~1.5mm, Width: 4m~6m
Physical-mechanical property of the product:
| Quality in unit area, g/square meter | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | Note | |
| Thickness.mm | 0.25-0.35 | 0.3-0.5 | |||||||
| Index | Breaking strength. KN/m | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | Length and width |
| CBR bursting strength, KN | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | ||
| Tearing strength, KN | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 | Length and width | |
| Thickness.mm | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | Note |
| One-textile one-membrane | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | |
| Two-textile one-membrane | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 |

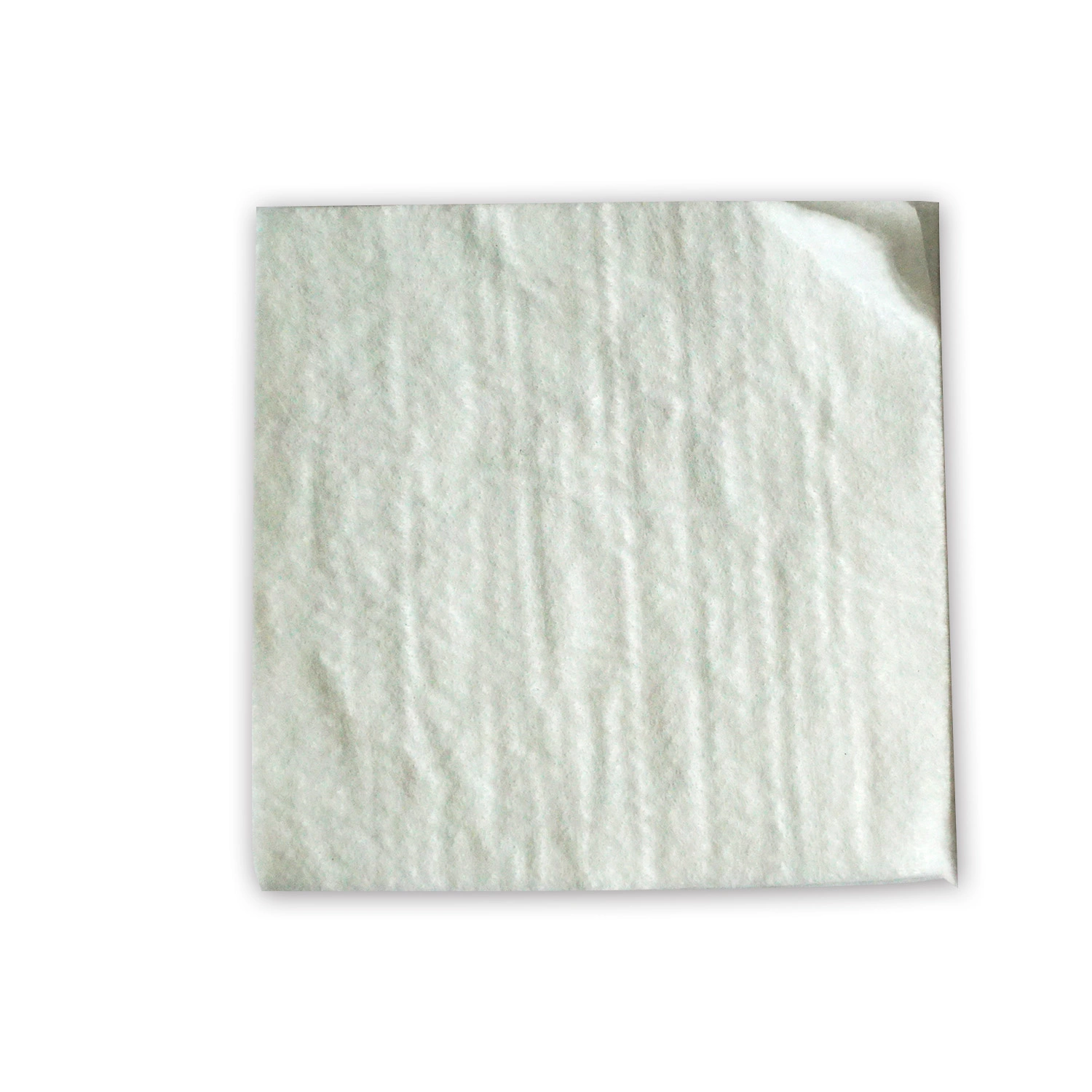

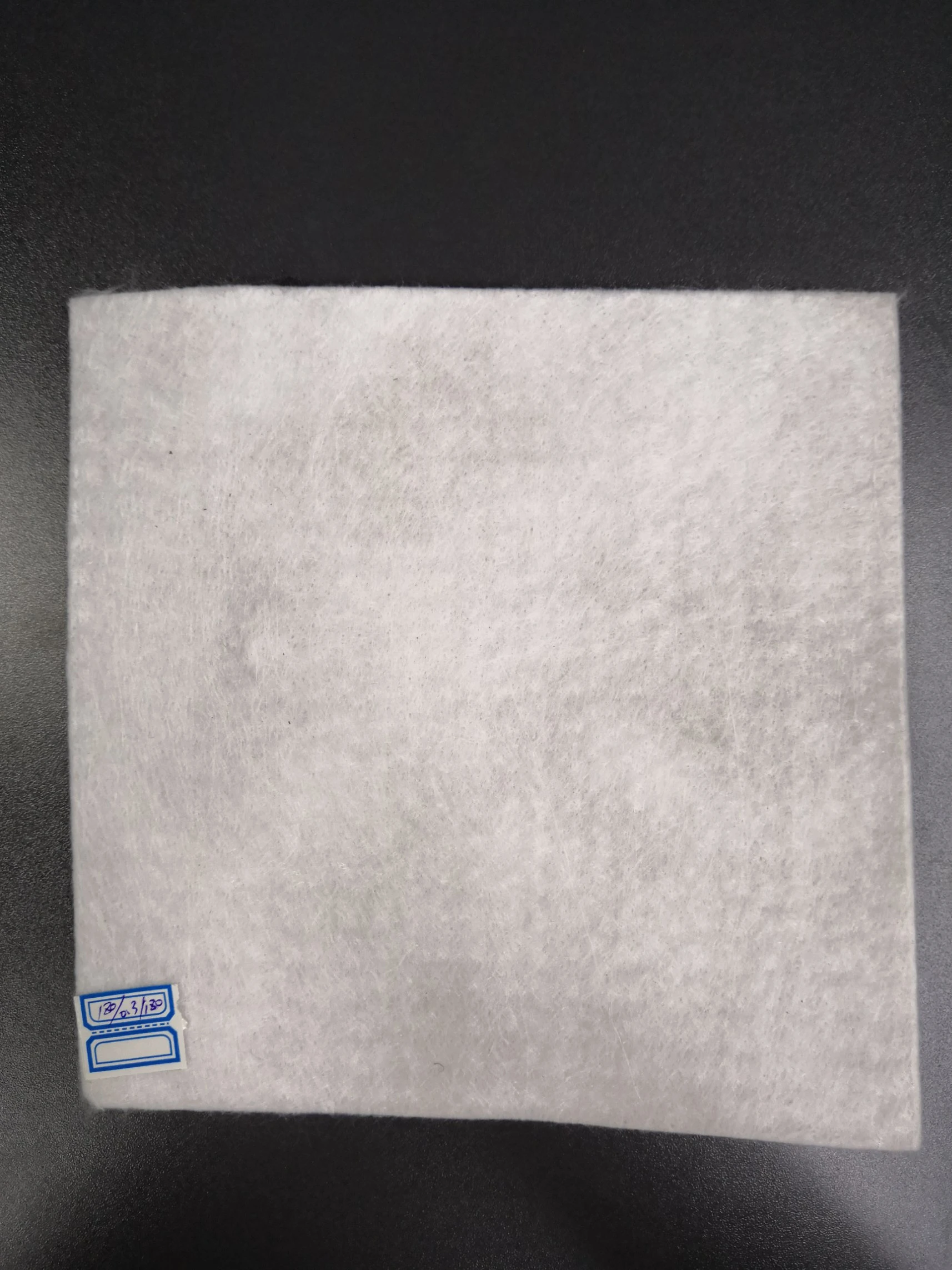

Detailed Imagine:
