Geosynthetic Composite Nonwoven Geotextile China Supplier Good Price

Waterproof material Polyester/PP Staple/Short fiber Needle Punched Non Woven Geotextile Fabric,Good price,for Landfill/Dam/Artificial Lake/Water Tanks/Aquatics/Road Construction/composite geomembrane/composite geotextile/Geocomposite1)short fiber needle punched nonwoven geotextile fabric is made of polypropylene or polyeste

Featured Products

Waterproof material Polyester/PP Staple/Short fiber Needle Punched Non Woven Geotextile Fabric,
Good price,for Landfill/Dam/Artificial Lake/Water Tanks/Aquatics/Road Construction/composite geomembrane/composite geotextile/Geocomposite

1)short fiber needle punched nonwoven geotextile fabric is made of polypropylene or polyester.
   Its production process
include fluffing,comb,mix,laying then needle punched.
2)Specification:
   100GSM - 1500GSM
3)Raw Material: PP or Polyester
4)Properties:
   Good flexibility, permeability, filtration, separation and easy for construction
5)Usage:

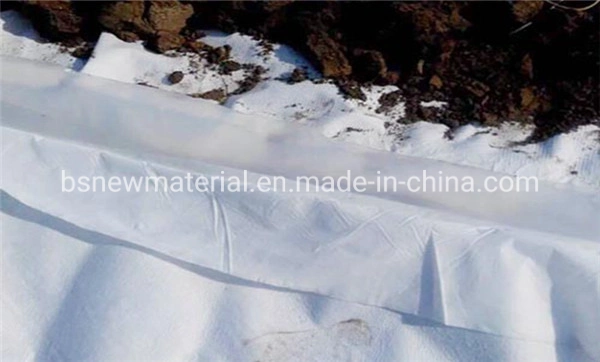

   Nonwoven geotextile used in the area of highway, railway, dam,filtration of reinforcement for land ,
   separation,drainage and
protection.
6)Size of Package:
  width 2-8m,length 50-100m  (or at request).
7)Regular sizes for export:

  100g/M2,150g/M2,200g/M2,250g/M2,300g/M2,350g/M2,400g/M2,450g/M2,500g/M2,600g/M2,
   800g/M2,1000g/M2,
   4m*50M Per Roll & 4M*100M Per Roll,or as required.

8)Delivery time:within 10-20 days after receiving the advance payment
9)Small pieces of Sample is available
10)Technical Data:

No.ItemSpecificationNote
100 150 200 250 300 350 400 450 500 600 800
Weight Variation %-8-8-8-8-7-7-7-7-6-6-6

Thickness  mm ≥0.9 1.31.72.12.4 2.73.03.3 3.6 4.15.0
Width Variation %-0.5
Breaking Strength KN/m 2.5 4.5 6.5 8.0 9.511.012.5 14.0 16.019.025.0MD and TD
Elongation at Break % 25 ~ 100
CBR Mullen Burst Strength KN≥0.3 0.6 0.91.21.51.82.12.42.73.24.0
Sieve Size O90 (O95mm 0.07 ~ 0.2
Vertical Permeability Coefficient cm/s K× (0.1 ~ 0.001) k=1.0-9.9
Tear Strength KN ≥0.08 0.12 0.16 0.20 0.24 0.28 0.33 0.38 0.42 0.46 0.6MD and TD
