100-800g PP nonwoven geotextile fabric
Geotextile
Description:
Short fiber knitting geotextile takes the polypropylene fiber or the polyester fiber short fiber as the primary material, after blooms the pine, to comb, disorderly, craft productions and so on shop net, acupuncture to become.
Product Features
1.Net holes are easy for net blockage, since net structure formed by indefinite fiber has variable and motility.
2.It has high permeation and can keep good permeation under the pressure of earthwork.
3.t has corrosion resistance, uses chemical fiber such as polypropylene or Dacronas raw material, has acid and alkali resistance, hasn't corrosion or moth eating and has oxidation resistance
4.It has convenient construction, small weight and convenient uses.
Product main use:
Acid & Alkali Resistance filtration, drainage reinforce, protection, lutation of irrigation works, water electricity, roads, railways, ports, sport venue, tunnel, environment protection, etc.
Product specification: 100~1000g/m2 Width: max6.6m
Geotextile
Description:
Short fiber knitting geotextile takes the polypropylene fiber or the polyester fiber short fiber as the primary material, after blooms the pine, to comb, disorderly, craft productions and so on shop net, acupuncture to become.
Product Features
1.Net holes are easy for net blockage, since net structure formed by indefinite fiber has variable and motility.
2.It has high permeation and can keep good permeation under the pressure of earthwork.
3.t has corrosion resistance, uses chemical fiber such as polypropylene or Dacronas raw material, has acid and alkali resistance, hasn't corrosion or moth eating and has oxidation resistance
4.It has convenient construction, small weight and convenient uses.
Product main use:
Acid & Alkali Resistance filtration, drainage reinforce, protection, lutation of irrigation works, water electricity, roads, railways, ports, sport venue, tunnel, environment protection, etc.
Product specification: 100~1000g/m2 Width: max6.6m
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remark | |||||||||||
| Quality deviation per unit acreage% | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |||||||||||
| Thickness,mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |||||||||||
| Width deviation for range,%m | -0.5 | |||||||||||||||||||||
| Mightiness at break,KN/m ≥ | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal | ||||||||||
| Elongation at break,% | 25-100 | Vertical and horizontal | ||||||||||||||||||||
| CBR bursting strengthk,KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |||||||||||
| Effective aperture O90(O95)mm | 0.07-0.20 | |||||||||||||||||||||
| Vertical osmotic coefficient,cm/s | K x(10-1-10-3) | K=1.0-9.9 | ||||||||||||||||||||
| Tearing strength, KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | Vertical and horizontal | ||||||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remark | |||||
| Quality deviation per unit acreage% | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | |||||
| Thickness,mm≥ | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | |||||
| Width deviation for range,%m | -0.5 | |||||||||||||||
| Mightiness at break,KN/m ≥ | 4.5 | 7.5 | 10.0 | 12.5 | 15.0 | 17.5 | 20.5 | 22.5 | 25.0 | 30.0 | 40.0 | Vertical and horizontal | ||||
| Elongation at break,% | 40-80 | |||||||||||||||
| CBR bursting strengthk,KN≥ | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3.0 | 3.5 | 4.0 | 4.7 | 5.5 | 7.0 | |||||
| Effective aperture O90(O95)mm | 0.07-0.20 | |||||||||||||||
| Vertical osmotic coefficient,cm/s | K x(10-1-10-3) | K=1.0-9.9 | ||||||||||||||
| Tearing strength, KN≥ | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.70 | 0.82 | 1.10 | Vertical and horizontal | ||||
Photos show:

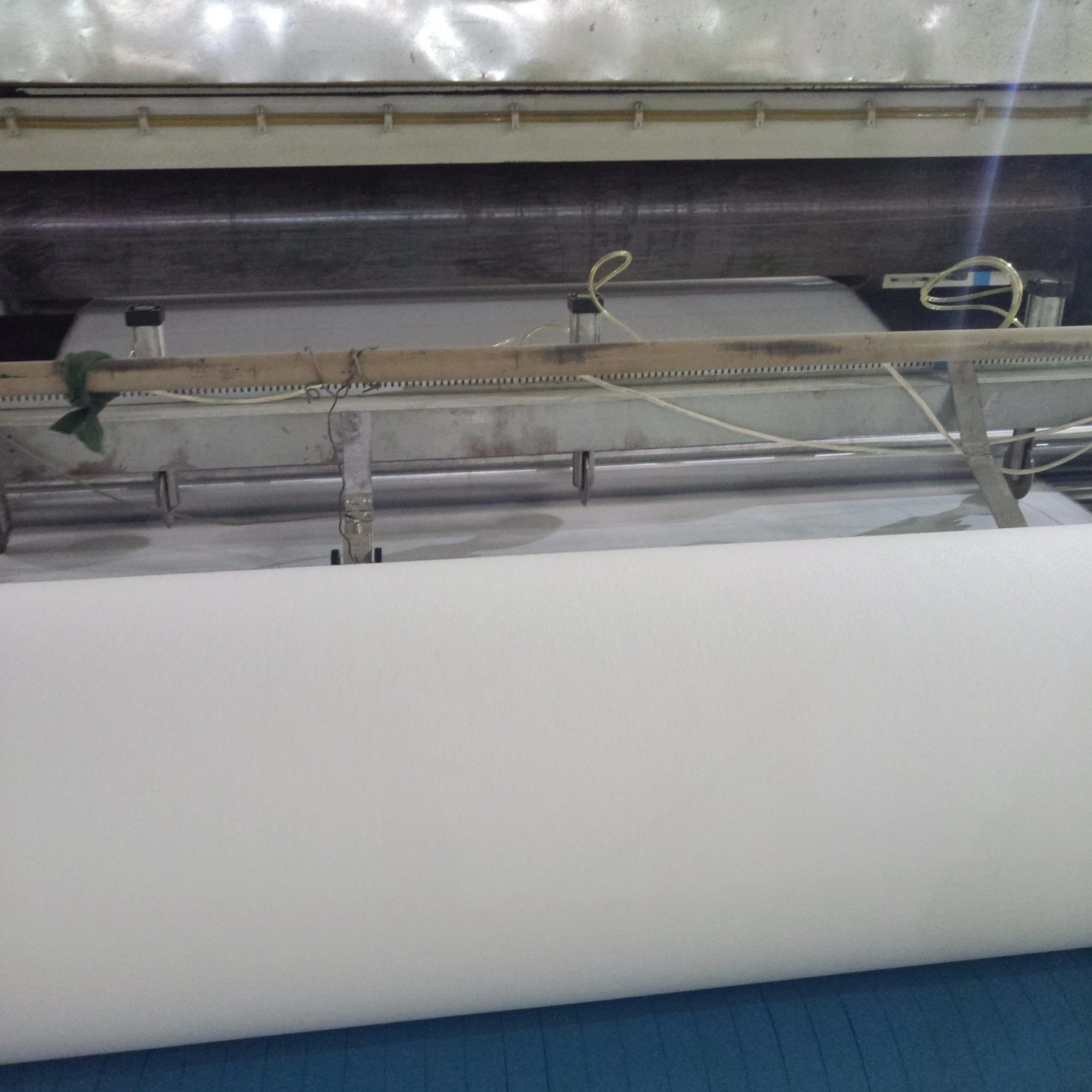

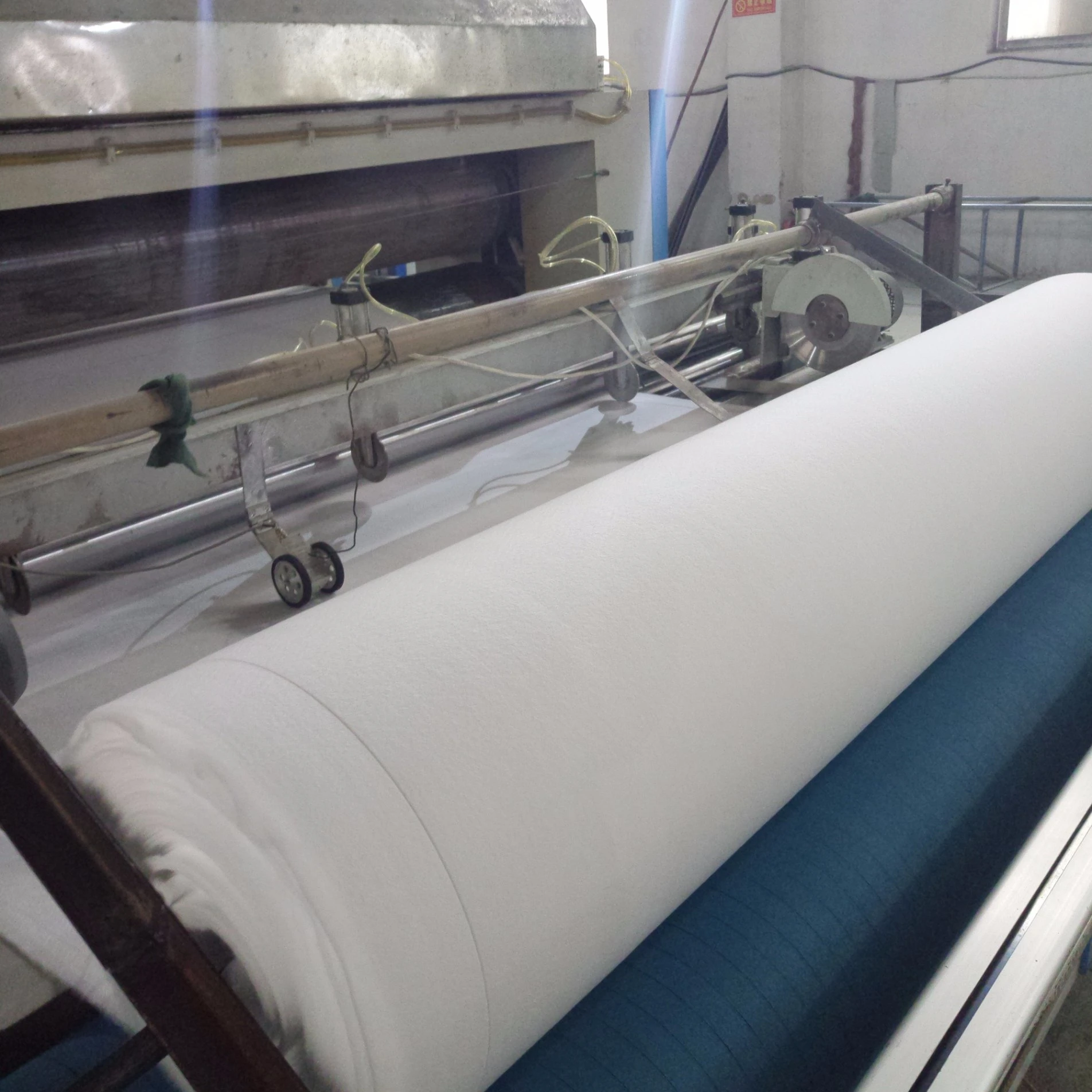

Production Line:
Certificate:
